Switchcraft TT4W24MCN1 - TT JAX Patch Bay - Sold As Is.

  • $99.99
    Unit price per

Brand: Switchcraft
Model: TT4W24MCN1

Switchcraft TT4W24MCN1 - TT JAX Patch Bay with .173 Connectorized 4 - wire Jackfield, 24 circuits, 144 jack total.

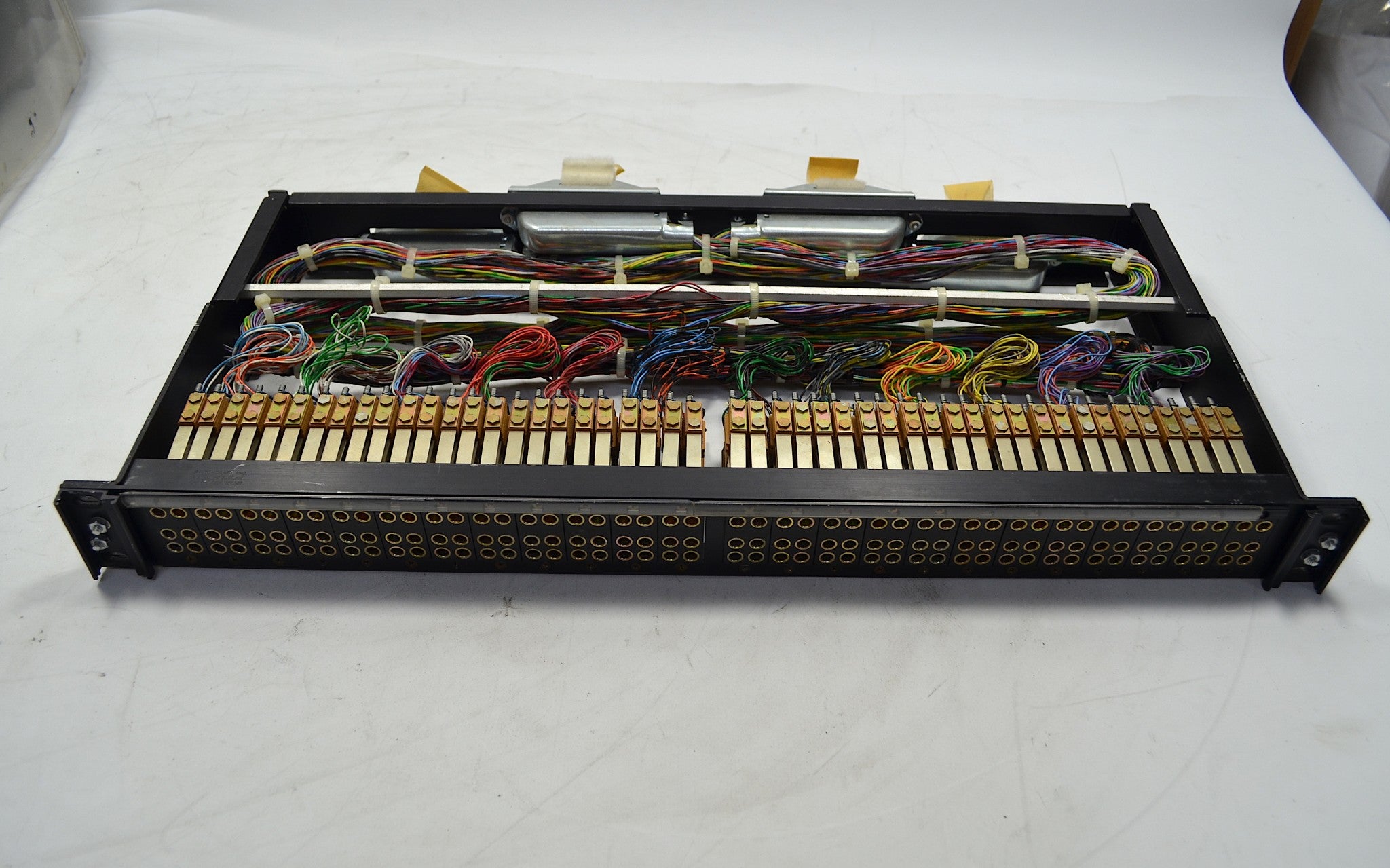

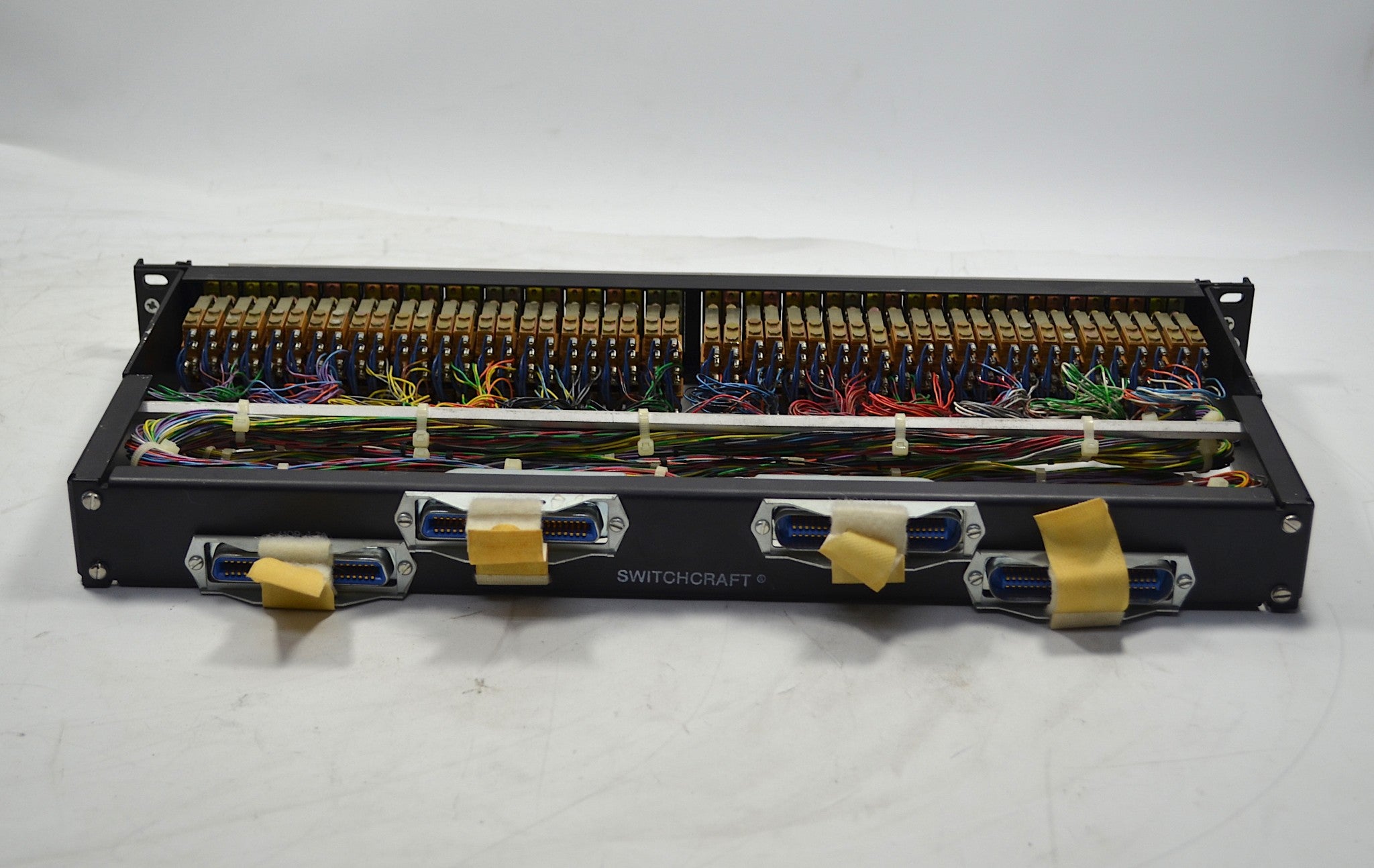

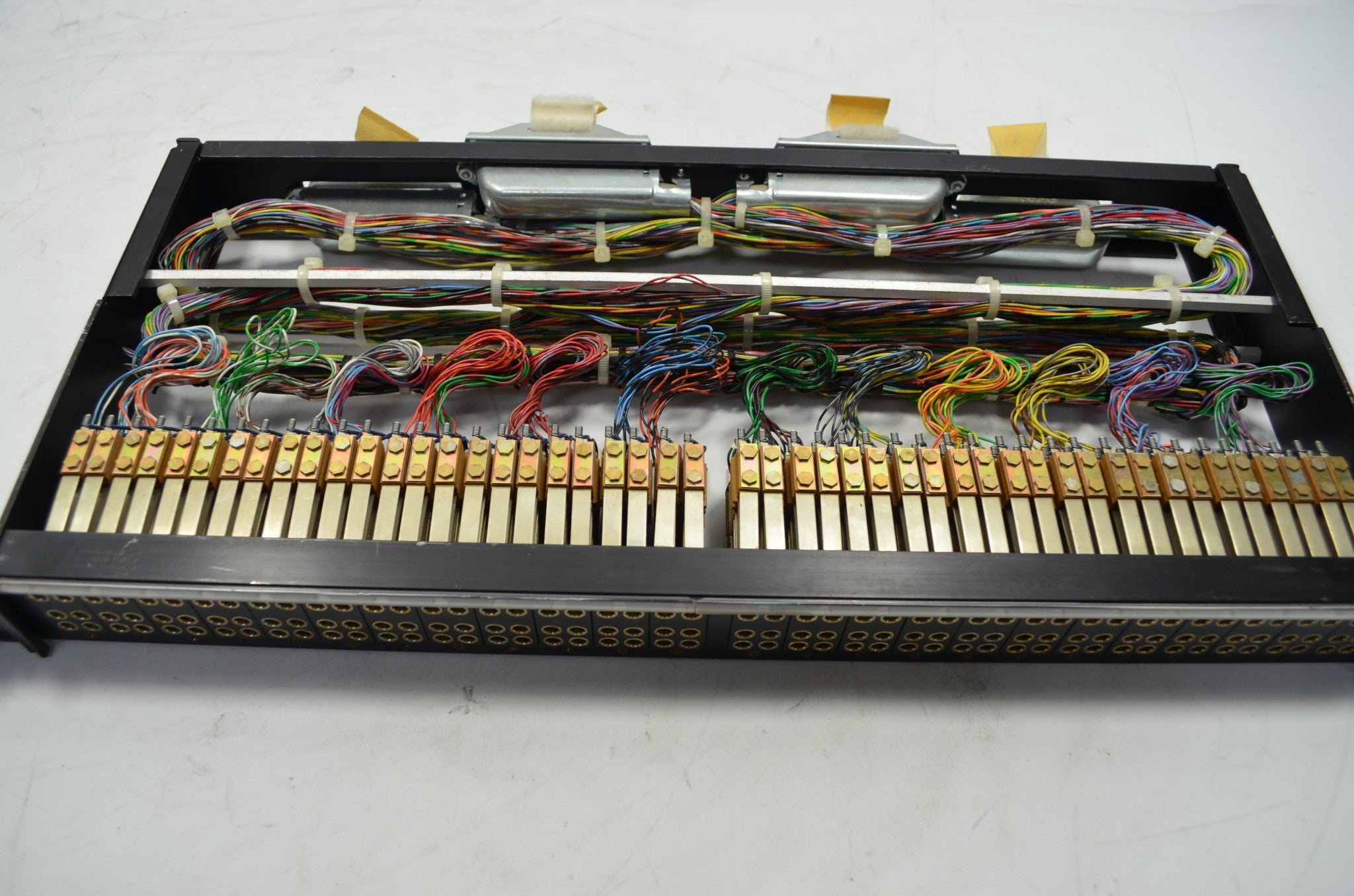

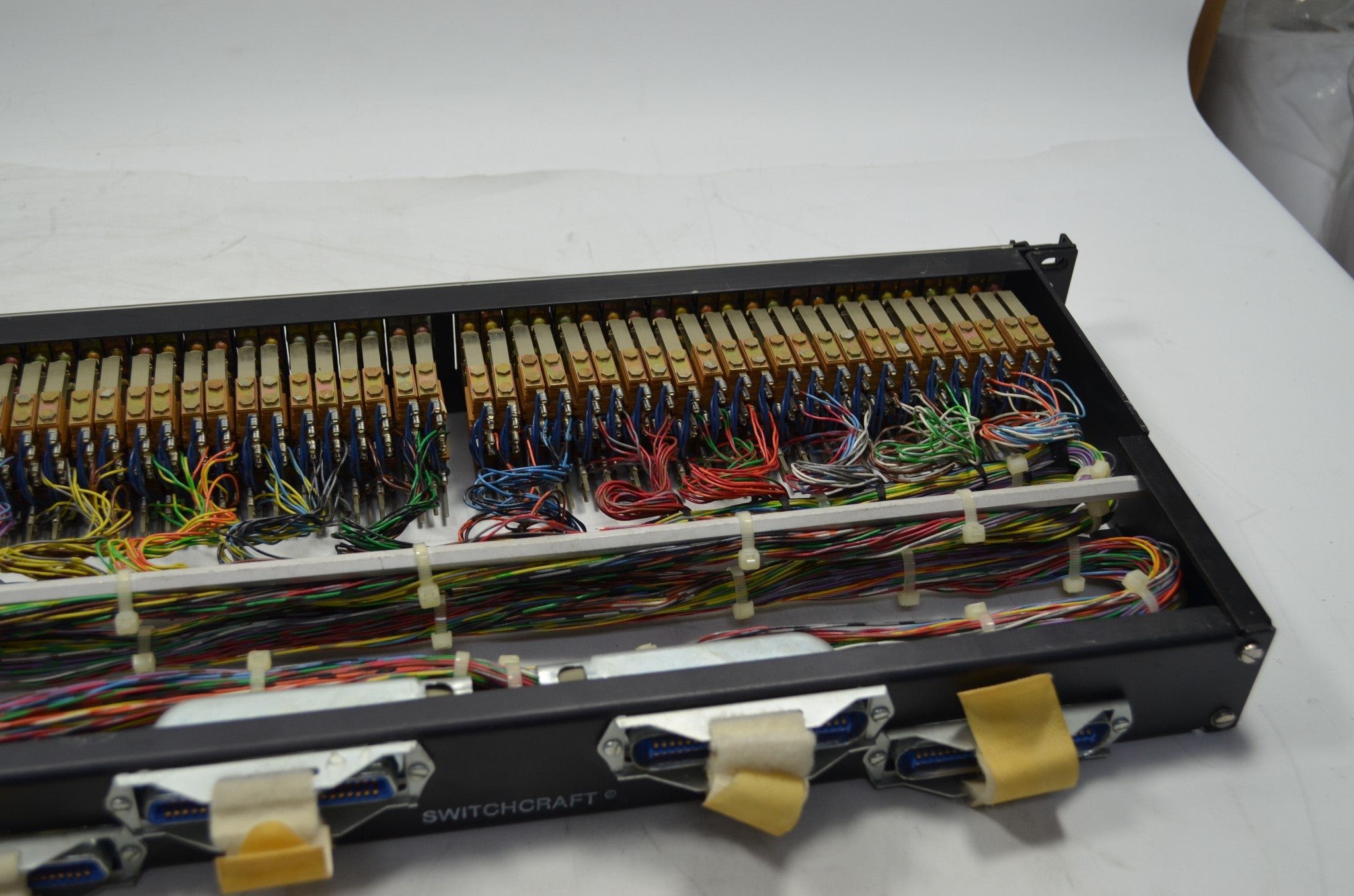

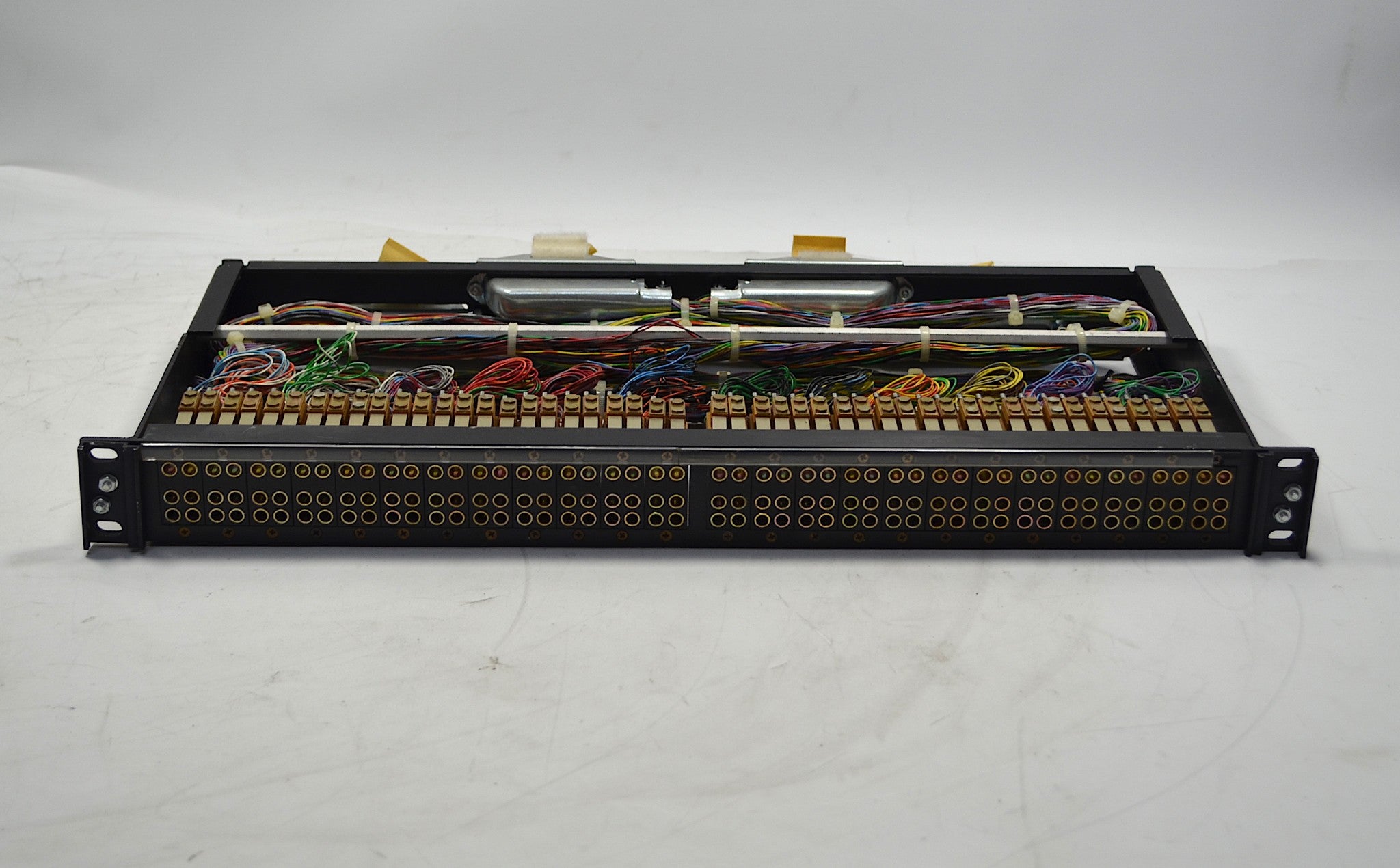

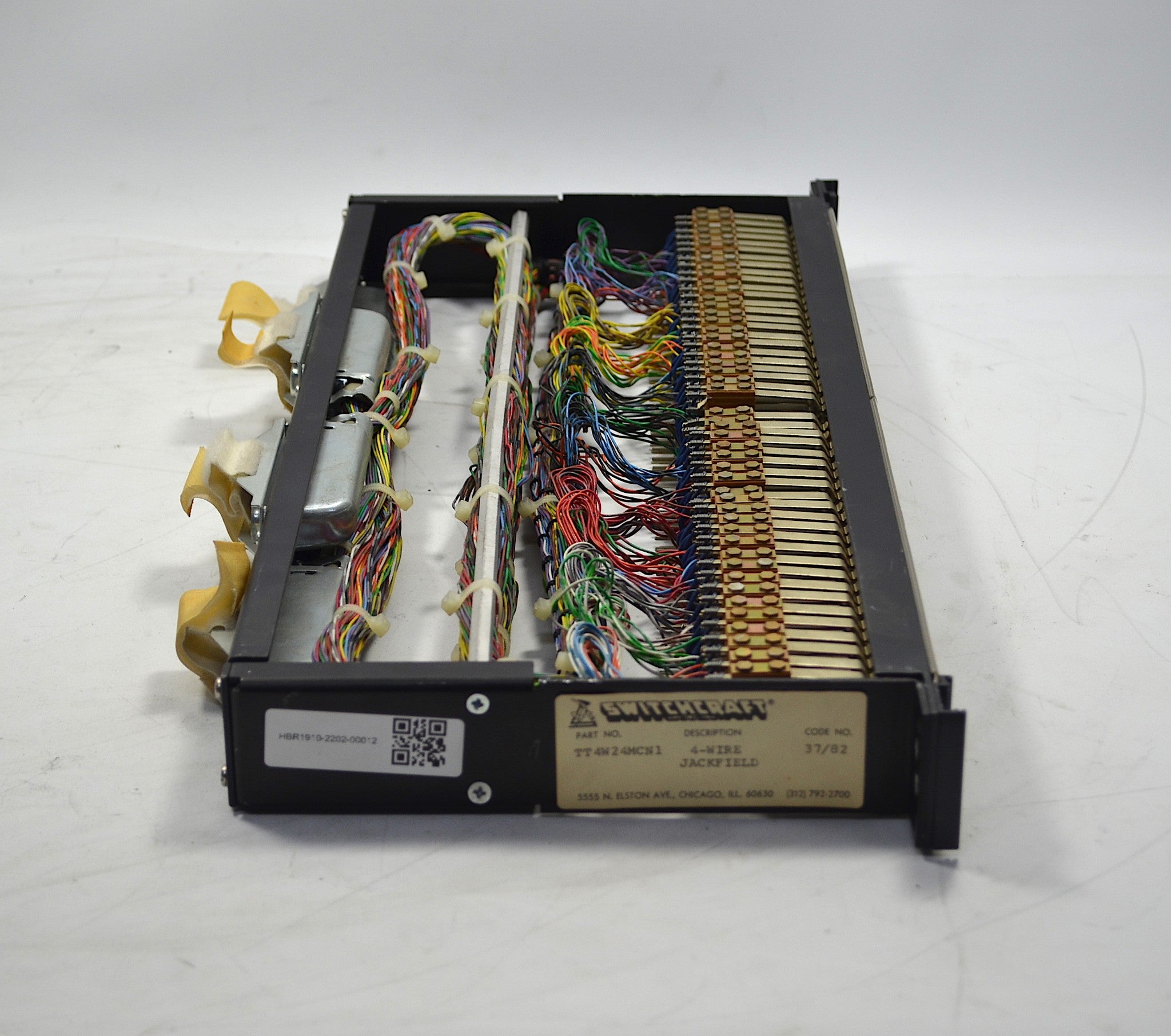

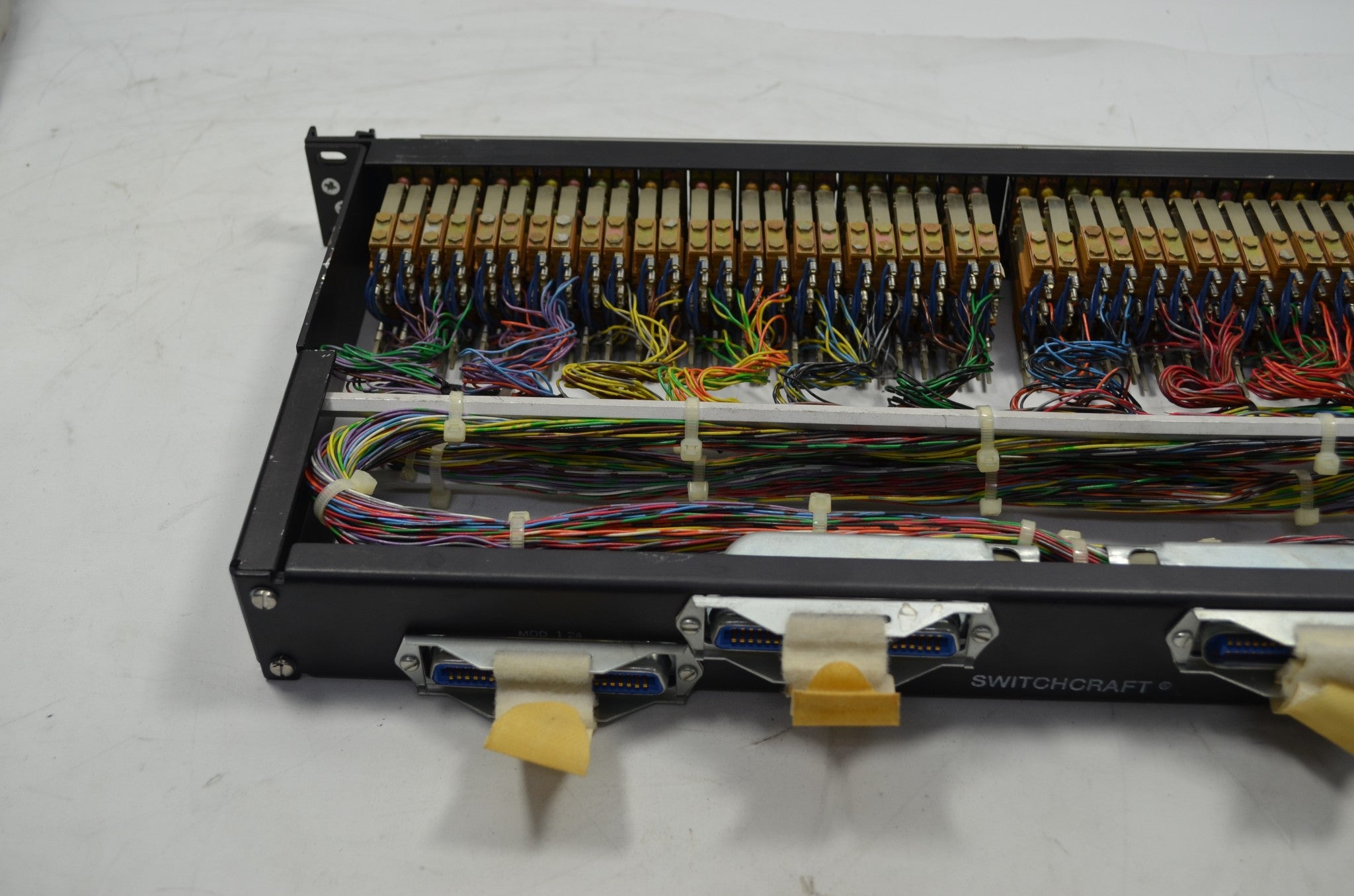

Unit comes AS IS. See photo for detail

• Series TT, 2-Wire, 4-Wire, 6-Wire
• Panel and Integral Designation Strip: Aluminum alloy, extruded per QQ-A-200/8. Black anodized per MIL-A-8265.
• Modules: Precision-molded thermosetting plastic. Black standard.
• Mounting Screws: Black zinc, #3-48 x 312 inch flat head machine screw.
• TT-Jax® Jacks: See jacks section for TT-Jax® specifications.
• Marking Strip: Matte finish white plastic.
• Vertical Designation Strip: Extruded aluminum, black anodized.
• Back Frames: Cold rolled steel, zinc-plated with iridescent tarnish-resistant finish.
• Screws, Nuts and Lockwashers: Steel, clear iridite tarnish-resistant finish over zinc-plating.
• Connectors: 50-pin micro/pierce plugs and receptacles.
• Cable Tie Bar: Aluminum hexagon alloy. 6061-T6, clear iridite finish per MIL-C-5541 (not hinged versions only).

Series TTPC, 4-Wire, 6-Wire

Insertion/Withdrawal Force: Meets MIL Spec MIL-J-641.

Jack Body: Polyester thermoplastic, black UL 94V-0.

Contact Springs: Stainless steel wire, gold over nickel plate.

PC Board: Type FR-4, 2 ounce copper-plated through holes.

Functionality: Sold As Is.

Physical Condition: Grade B. some dust and oxidization

All items will be packaged very nicely and with care.
Feel free to ask us any questions and we will do our best to answer them.
Returns are accepted from 30 days of original delivery date. If you have any problems with the product please contact us first and we will be more than happy to help.
If you need to return your item please contact us via message so that your return can be processed quickly and efficiently.
All serial numbers and/or IMEI are recorded to discourage fraud. Thank you for your time and interest we hope to do business with you.
Please note: This listing only includes the items and accessories pictured or mentioned.  All other cords, software, adapters, cables, parts, manuals, remotes, etc are not included if not pictured or mentioned.  Thank you for your understanding.
