Studio Technologies IFB Plus Model 2 Central Controller

  • $69.99
    Unit price per

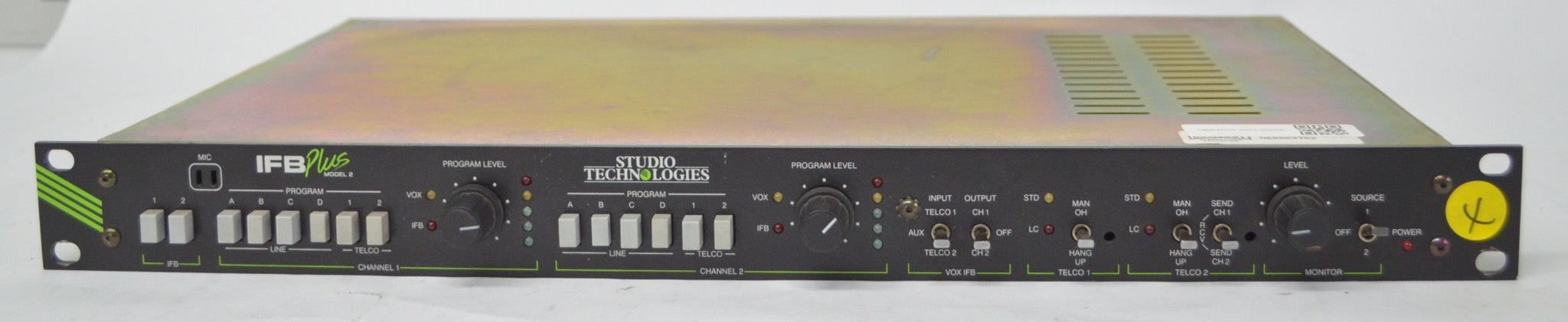

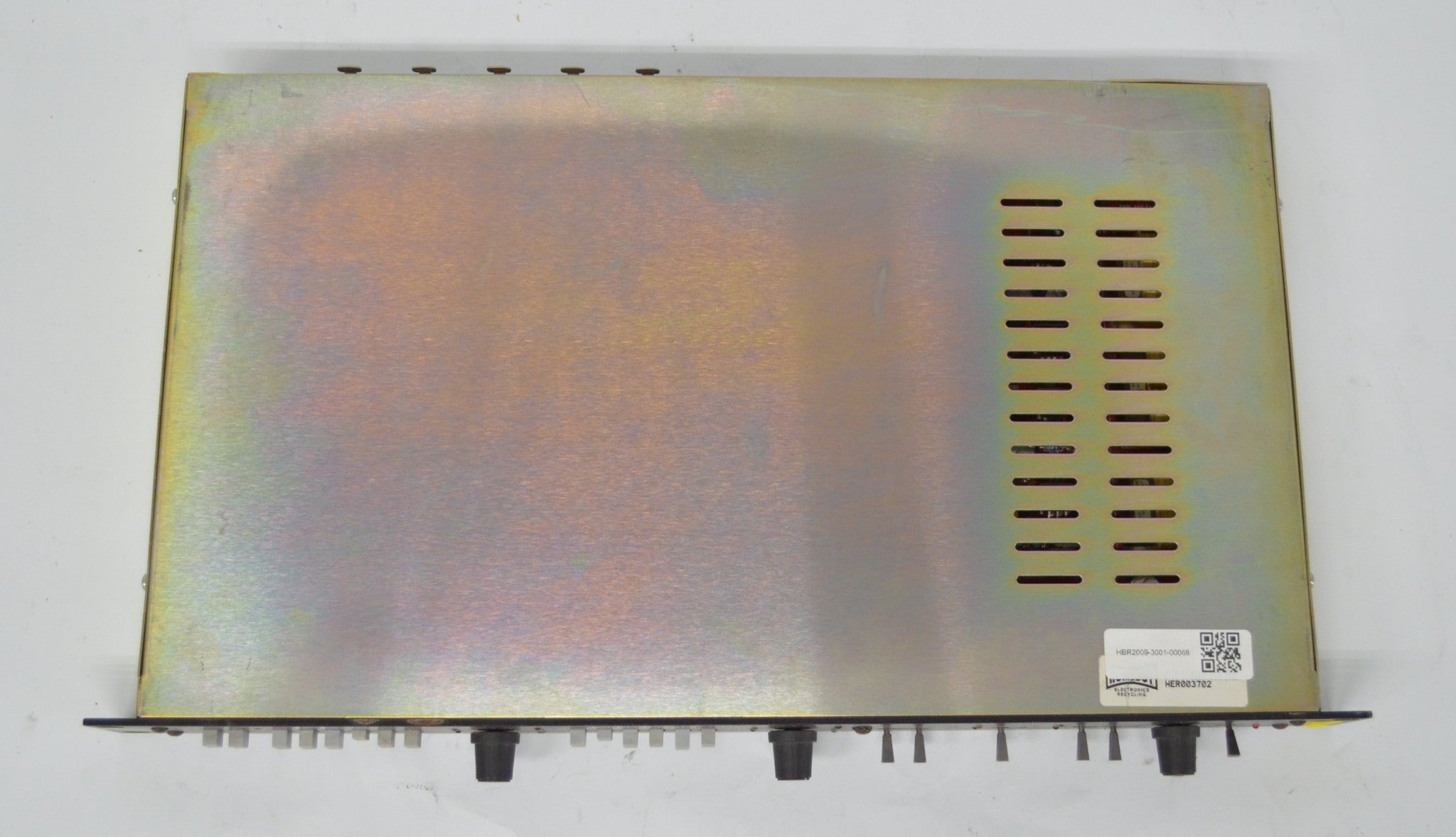

Studio Technologies IFB Plus Model 2 Central Controller

Tested for key functionality,  R2/Ready for Resale :  Unit individually tested and guaranteed to work. All XLR ports tested.

This listing only includes the items and accessories pictured or mentioned.  All other cords, software, adapters, cables, parts, manuals, remotes, etc are not included if not pictured or mentioned.  Thank you for your understanding.


  • Contained in a single rack space unit is everything required to implement a 2-channel
  • IFB system. Features include multiple program inputs, telephone interfaces, voiceoperated (VOX) interrupt, level meters, monitor amplifier, and internal interrupt microphone. Up to four Model 22 Access Stations
  • can be connected to the Model 2, allowing
  • producer or director positions to access the
  • IFB channels. In addition, up to four Model
  • 32 or Model 33 Talent Amplifiers can be connected to a Model 2. The Model 32 and 33
  • allow personnel access to the IFB channels
  • using a single standard microphone cable.

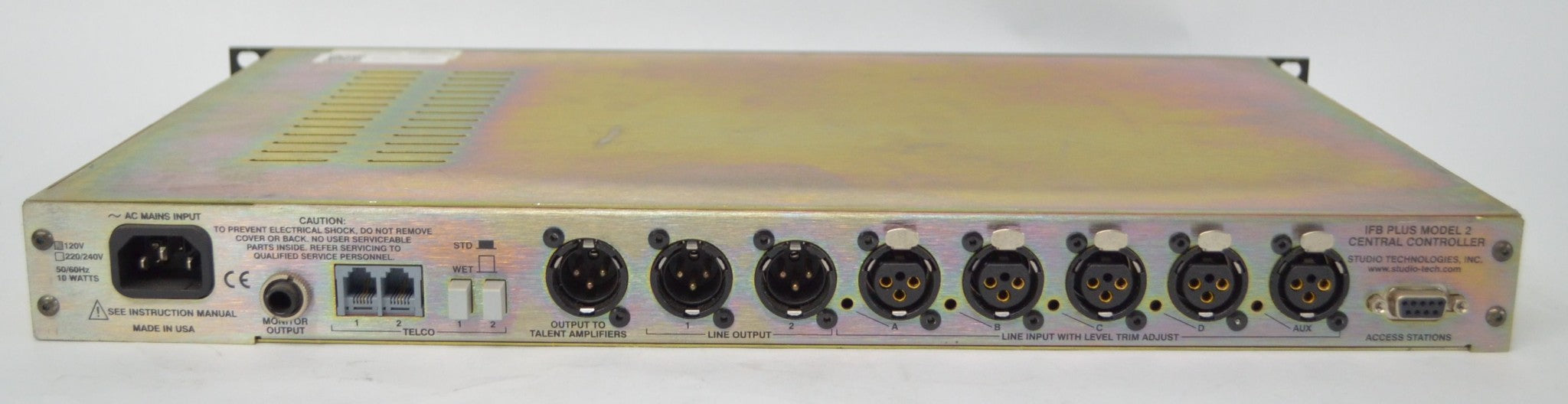

  • The Model 2 packs numerous features
  • into a single, 19-inch rack space. Standard
  • connectors are used throughout, including
  • 3-pin XLR-type, ¼-inch 2-conductor,
  • 9-position D-subminiature, and modular
  • telephone (RJ11-type) jacks. Power is supplied by standard 120 or 220/240 V (factory
  • configured), 50/60 Hz via a detachable cord."
