Extron MLS 406SA - Six Input Switcher with Stereo Audio Amplifier
Model: MLS 406SA
Extron MLS 406SA - Six Input Switcher with Stereo Audio Amplifier.
Includes power cord.
Please note: Full configuration of the device requires connection via the RS-232 Serial port. Also unit does not convert VGA to composite or composite to VGA.
Sound through amplifier is very clear.

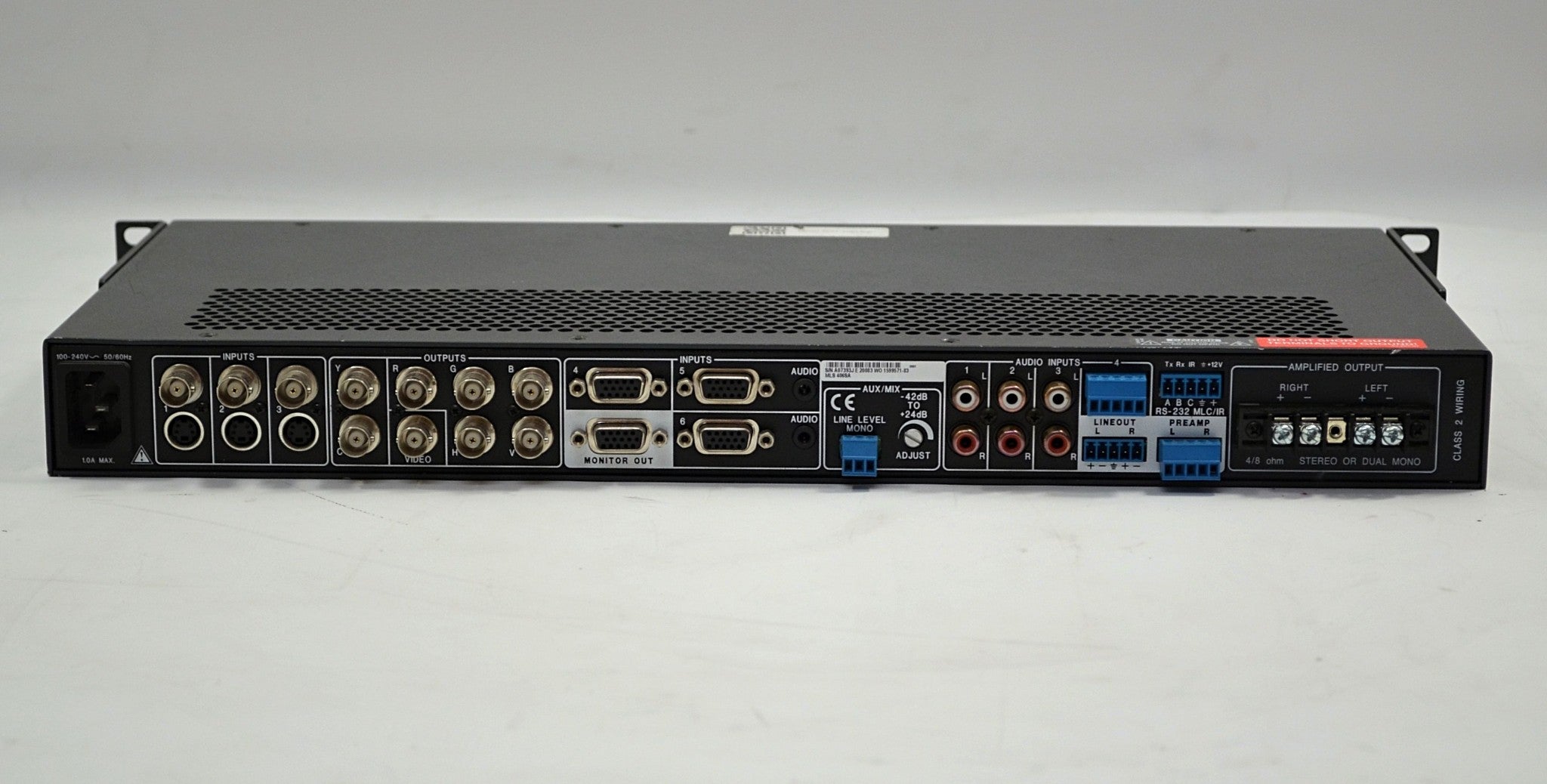

Video inputs: Three female BNC connectors paired with three 4-pin mini DIN connectors for composite video or S-video; three female 15-pin HD connectors for computer video, composite video, or S-video
Audio inputs: Three pairs of female RCA connectors, two female 3.5 mm stereo mini jacks, and one captive screw connector
Video outputs: Dual RGB output on five female BNC connectors and one female 15-pin HD connector, composite on one female BNC connector, and S-video on two female BNC connectors
Audio outputs: Captive screw connectors and insulated screw terminals
Controllable via TouchLink® Control System, MediaLink® Controller, front panel buttons, or RS-232 — The switchers can be controlled using the front panel backlit buttons or RS-232. An optional TouchLink Touchpanel Control System or MediaLink Controller may be connected to the RS-232 port to provide a simple and intuitive user interface for the MLS Switchers, and the entire room.
Local monitor output — 15-pin HD connector functions as additional RGB output or local monitor output to enable preview monitor capability without the need of a distribution amplifier.
Audio input gain and attenuation — Gain or attenuation can be adjusted for each input to eliminate noticeable differences when switching between sources.
Fixed and variable preamp line level audio outputs — Can be set for mono or stereo via RS-232.
Integrated stereo audio amplifier provides 24 watts, 2 x 12 watts rms, into 4 ohm speakers and 16 watts, 2 x 8 watts rms, into 8 ohm speakers — Outputs amplified stereo audio on insulated screw terminals.
Additional input accepts balanced/unbalanced mono line level audio signals for mixing with any of the four switchable inputs
Loudness control — Boosts low and high frequencies to compensate for the normal decreased hearing ability of the human ear at low volume levels.
Triple-Action Switching™ for RGB delay — Blanks the screen during switching of RGB signals to eliminate visible switching transitions.
Front panel security lockout — Allows security lockout of front panel buttons setup and adjustment options.
Rack-mountable, 1U, full rack width metal enclosure
Highly reliable, energy-efficient internal universal power supply — The 100-240 VAC, 50/60 Hz, international power supply provides worldwide power compatibility with high demonstrated reliability.
Functionality: Item has been tested for key functions. Ran composite in to port out. Ran VGA in on all port to VGA out. Tested amplified audio out.Tested audio line outputs. Tested audio inputs. Did not test s-video in or out.
Physical Condition: Grade B+. Top is scuffed.
All items will be packaged very nicely and with care.
Feel free to ask us any questions and we will do our best to answer them.
Returns are accepted from 30 days of original delivery date. If you have any problems with the product please contact us first and we will be more than happy to help.
If you need to return your item please contact us via message so that your return can be processed quickly and efficiently.
All serial numbers and/or IMEI are recorded to discourage fraud. Thank you for your time and interest we hope to do business with you.
Please note: This listing only includes the items and accessories pictured or mentioned. All other cords, software, adapters, cables, parts, manuals, remotes, etc are not included if not pictured or mentioned. Thank you for your understanding.
